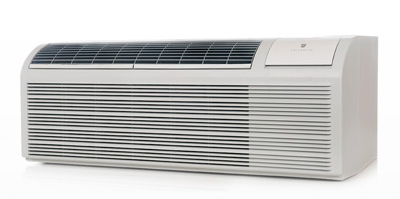

Friedrich offers a complete line of PTACs

• COOLING: 7000-15000 Btu, EERs up to 13.0
• ELECTRIC HEAT: 8300-17000 Btu, EERs up to 13.0

Features

Durable & Reliable Construction

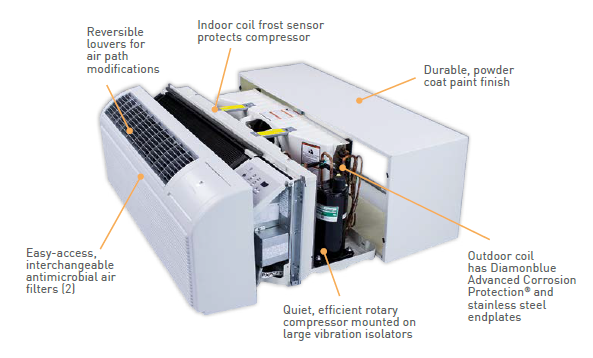

• Stainless steel endplates reduce outdoor coil corrosion.
• Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and cured in an oven for exceptional durability.
• Additional heating element bottom plate above an improved heat shield provides extra thermal protection.
• Additional thermistor on the blower scroll outlet regulates internal temperature.
• Factory run-tested units reduce problems in the field.
• Internal diagnostic program can alert maintenance to component failures or operating problems. Fourteen numeric service error codes stored in memory facilitate rapid unit diagnostics.
• Easy access filters simplify maintenance and extend the life of the product.
• Room freeze protection initiates heat if temperature falls to 40°F in an unoccupied room.
• Random compressor restart protects electrical systems from overload when power is restored.
• Tamper-resistant, anodized stamped aluminum grille withstands chalking and oxidation.
• Break-proof control door design maintains the integrity of the unit.
• Indoor coil frost sensor protects the compressor to lengthen the life of the unit.
• Diamonblue Technology protects the outdoor coil from harsh environments.

Warranty and Support

• Industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty.
• Nationwide service network and U.S. based Friedrich expert technical team ensures you get fast, knowledgeable service.

Energy Efficient & Energy Smart

• Super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6.
• Exceptional FriedrichLink® energy management thermostats available (wired & wireless) with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability.
• Advanced coil design adds more surface area leading to higher efficiencies.
• Thicker steel inner-wall and foam construction decreases thermal transfer and energy loss.
• Energy efficient heat pump models available in our complete line.
• Electronic defrost control ensures more run time in efficient heat pump mode.
• Electronic temperature limiting to adjust low/high temperature range limits for reduced energy usage.
• Slinger ring technology in condensate removal system cools the coil and increases efficiency.
• Desk control ready to allow hotel owners to control units from a central location.

Sound Reduction Technology

• Two permanently lubricated fan motors for added durability and reduced sound levels indoors.
• Quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly.
• High-density insulation and steel inner wall block outdoor noise.
• Tangential blower wheel creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.

Heat Pump

• COOLING: 7000-15000 Btu, EERs up to 13.0
• REVERSE HEATING: 6000-13300 Btu, COP up to 3.6
• AUXILIARY ELECTRIC HEAT: 8300-17000 Btu

Save big on energy without compromising guest comfort

FriedrichLink® Thermostats, the Energy Management Solution for Friedrich PTAC

Save big on energy without compromising guest comfort

FriedrichLink® Thermostats, the Energy Management Solution for Friedrich PTAC

Real Time Motion and Thermal Occupancy Sensor: Integrated Occupancy Sensor uses a combination of motion and thermal sensing technologies for accurate occupancy detection at all times - no need to install additional devices such as door switches or sensors.

Wired or Wireless Installation: Wired or wireless connectivity with extensive configuration options deliver full compatibility and easy integration with virtually any packaged HVAC system.

5 Energy Savings Presets: 5 distinct energy saving modes make it easy to choose the optimal energy saving settings for any property.

Friedrich’s EMRT1 and EMWRT1 thermostats use real-time motion and thermal occupancy detection to save energy.

When the room is unoccupied, the thermostat automatically adjusts the temperature to eliminate unnecessary heating and cooling.

Comfort, Health & IAQ

• Dehumidification removes up to 3.2 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
• Constant Fan mode provides continuous fan operation in cooling or heating modes to create a steady stream of white noise that masks sound level changes when the compressor cycles on/off.
• Fresh air damper brings in fresh outside air when desired.
• Intuitive unit controls are user friendly with easy-to-read LED display that can show either set-point or actual room temperature as selected by owner.
• Anti-microbial air filters are easy to access and washable.
• Instant Heat on heat pump models quickly heats a room to the desired temperature for increased comfort.
• Even-heat monitoring checks room temperature and automatically adds heat boost if necessary.
• Automatic periodic sampling of room temperature to ensure desired conditions are maintained.
• Reversible indoor air louvers to easily change direction of airflow.

Ease of Maintenance & Installation

• Modular product design ensures easy access to key components for cleaning and repairs; including washable, lift-out air filters.
• Remote thermostat pop-out wiring module allows easier wiring and unit change out without rewiring thermostat.
• Standard heat output power cord comes attached to the unit.
• Compact front is designed to preserve indoor floor space with a depth of 7¾ inches.
• Faultless Sure-hold front cover system securely attaches the front each time.
• Inner wall service plate provides service access to tangential blower bearing without having to open up the entire inner wall.
• Unit may be installed flush with the floor.
